Specifications:
Maximum Load Current:
AC5A, 10A, 20A, 40A
Control System:
Phase control
Applicable Load:
Linear (R) load
Input Signals:
4-20mA DC
Input Impedance:
540 ohm (with 20-mA input) *Built-in constant voltage circuit: 5V
Load Voltage:
AC100 - 220V
Permissible Voltage Fluctuation:
Within +/- 10% of the rated load voltage
Leak Current:
5 mA or less (at 200 VAC)
Insulation System:
Photo-triac or photo-coupler
Insulation Resistance:
Over 100 Mohm (500-VDC megger)
Insulation Withstand Voltage:
1500 VAC for one minute
Permissible Ambient Temperature Range:
0ºC to 40ºC

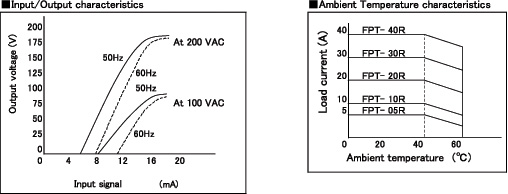

(If the ambient temperature exceeds 40ºC, see the load current charateristic diagram.)
Permissible Ambient Humidity Range:
45% to 85% RH
Environmental Conditions:
No exposure to corrosive/inflammable gases, dust or vibration
Cooling System:
Self cooling by radiator fins
Installation:
DIN rail mounted or wall mounted
Single phase power controller FPT series from Shinko is low cost. It answers to highly precise control needs by phase control like a SSR.
